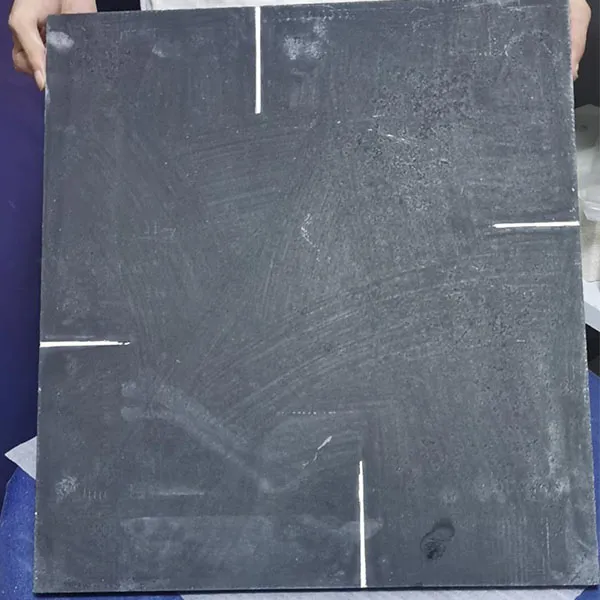

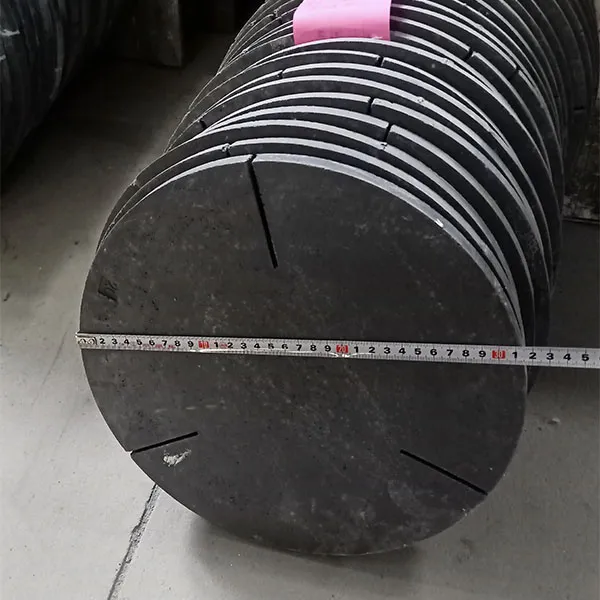

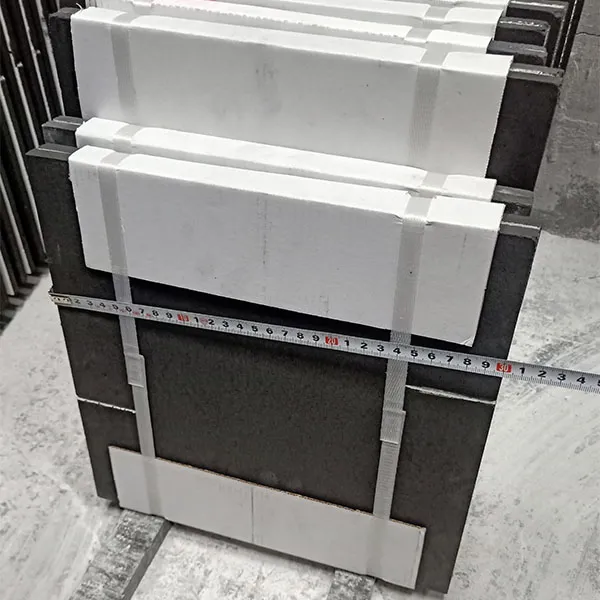

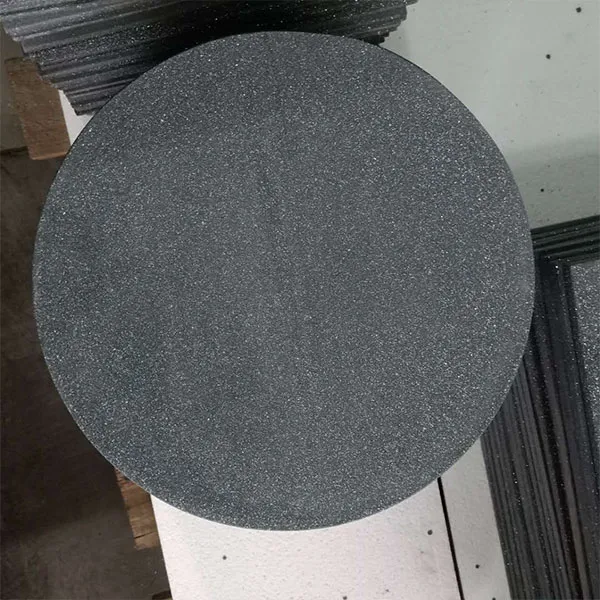

what is Silicon carbide plate
لوحة كربيد السيليكون is a high-performance ceramic material known for its exceptional thermal conductivity, high-temperature resistance, و abrasion resistance. Widely used in industries such as semiconductor manufacturing, مبادلات حرارية, و industrial furnaces, these plates are ideal for demanding environments.
Their customizable sizes و mechanical strength make them suitable for applications like LED production, solar energy systems, و aerospace components. With properties like مقاومة التآكل و low thermal expansion, silicon carbide plates are a reliable choice for high-temperature applications و wear-resistant solutions, ensuring durability and efficiency in extreme conditions.

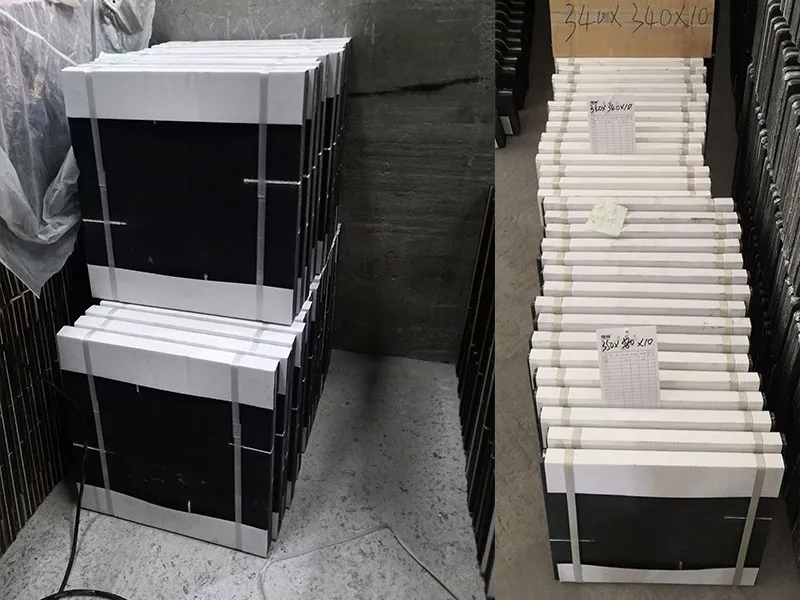

Silicon Carbide Plate price
Performance parameters of silicon carbide board
| property | More Information |
|---|---|
| التركيب الكيميائي | كربيد السيليكون (كربيد كربيد), usually contains small amounts of impurities such as aluminum, iron, oxygen, إلخ. |
| density | 3.10 – 3.21 g/cm³ |
| صلابة | 9.5 Mohs hardness (second only to diamond) |
| Bending strength | 300 – 600 MPa |
| قوة ضاغطة | 2,000 – 4,000 MPa |
| Coefficient of thermal expansion | 4.0 – 4.5 × 10⁻⁶ /°C（Room temperature to 1,000°C） |
| الموصلية الحرارية | 120 – 200 W/m·K |
| Maximum operating temperature | 1,650°C（Inert gas environment） |
| Conductivity | Semiconductor properties, with adjustable resistivity ranging from 10⁻² to 10⁶ Ω·cm |
| مقاومة التآكل | Resistant to acid, alkali and molten metal corrosion |
| ارتداء المقاومة | Very high, suitable for high wear environments |
What are the advantages of silicon carbide plates?
- Excellent high temperature resistance, suitable for high temperature heat treatment applications such as industrial furnace linings and heat exchangers.
- Excellent wear resistance makes it an ideal choice for high wear environments, such as abrasive equipment parts.
- Excellent chemical stability, suitable for corrosion-resistant chemical equipment such as reactors and tank linings.
- High thermal conductivity makes it an efficient heat dissipation material and is widely used in thermal management of electronic devices.
- معامل التمدد الحراري المنخفض reduces material deformation at high temperatures, suitable for precision instruments and high-precision applications.
- Its excellent electrical insulation properties make it of great value in high-voltage electrical equipment.
- Lightweight and high-strength, it is an ideal choice for lightweight materials in aerospace.
- عمر خدمة طويل and reduce maintenance costs of industrial equipment.
- Environmentally friendly materials, suitable for green energy applications such as solar and wind energy equipment.
- Biocompatibility potential can be explored for use in medical implant materials.

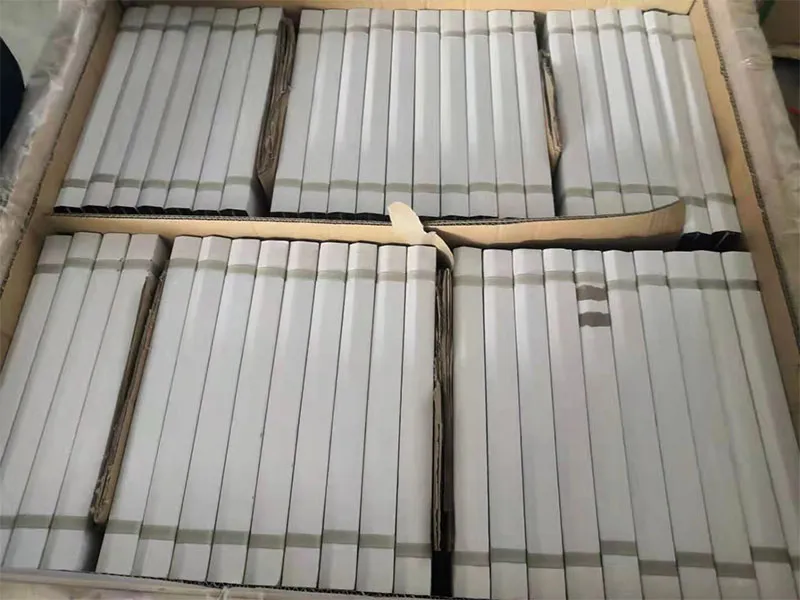

Silicon carbide plate for sale
Silicon carbide plate production process
1. تحضير المواد الخام
- Raw material selection：High-purity silicon powder and carbon powder (such as graphite) are the main raw materials and usually need to be processed to micron-level particle size.
- خلط: Mix silicon powder and carbon powder in a specific ratio to ensure uniform composition.
2. forming
- Dry pressing: The mixed powder is pressed into shape using cold isostatic pressing (CIP) or dry pressing.
- Injection molding: used for products with complex shapes, the powder is mixed with a binder and then injected into a mold for molding.
3. sintering
- Pressureless Sintering：Sintering is carried out in a high temperature furnace without external pressure, which is suitable for large-scale production.
- Hot Pressing：Sintering under high temperature and high pressure can improve product density and mechanical strength.
- Reaction Bonding：Silicon reacts with carbon to form SiC, while filling the pores and increasing the density of the material.
4. مرحلة ما بعد المعالجة
- Machining: Through cutting, grinding and polishing, the product can reach the required size and surface finish.
- Coating: According to the application requirements, anti-oxidation or wear-resistant coating can be added to the surface.
5. Quality Inspection
- Density measurement: Detects the density of the material.
- Hardness test: Evaluates the wear resistance and mechanical strength of the material.
- Microstructure analysis: Analyzes the grain structure and microscopic defects using an electron microscope.
6. Packaging and Shipping
- التعبئة والتغليف: Appropriate packaging is carried out according to product characteristics and transportation requirements.
- مواصلات: Ensure that damage is avoided during transportation, especially in long-distance and cross-border transportation.

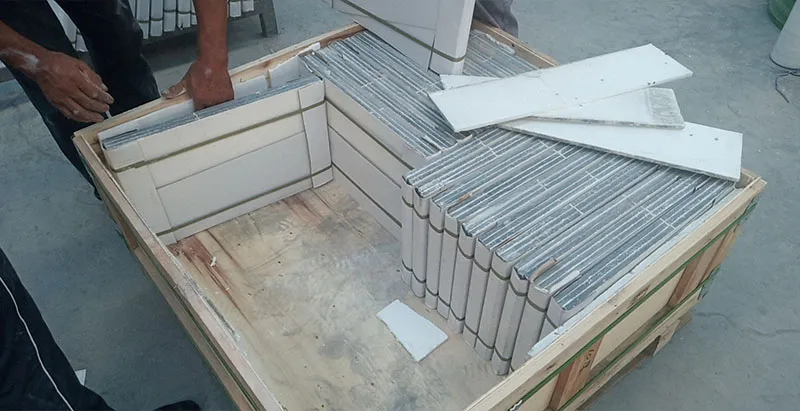

Silicon carbide plate manufacturers
“Silicon Carbide Plate” VS “Cordierite Mullite Plate”
| مميزة | SiC Plate | Cordierite Mullite Plate |
|---|---|---|
| Material composition | كربيد كربيد | كورديريت、موليت |
| مقاومة درجات الحرارة العالية | Very high（>1600°C） | better（1200°C-1400°C） |
| القوة الميكانيكية | High, excellent wear resistance and pressure resistance | Moderate, low wear and compression resistance |
| الموصلية الحرارية | High, suitable for thermal management applications | Low, suitable for thermal insulation and heat preservation applications |
| الاستقرار الكيميائي | ممتاز, resistant to acid, alkali and chemical media corrosion | جيد, but may not perform well in strong acid and alkali environments |
| Coefficient of thermal expansion | Low, resistant to drastic temperature changes | Lower, but slightly higher than silicon carbide |
| weight | Higher | Lower |
| يكلف | High, complex production process | Low, lower production cost |
| Main application scenarios | High temperature, high stress, high thermal conductivity environment (such as electronic cooling, high temperature furnace, mechanical seal) | Insulation, heat preservation, low stress environment (such as kiln lining, insulation material, catalyst carrier) |
| Processing performance | Difficult, requiring special equipment and techniques | Relatively easy, good processing performance |
Company Introduction
Henan Lite Refractory Co., المحدودة. has become a leading enterprise in the refractory industry with advanced production technology and strict quality control. The company focuses on the production of high-performance refractory materials, مثل silicon carbide plates و cordierite mullite plates, which are widely used in high-temperature industrial fields such as steel and ceramics to ensure the excellent performance of products in extreme environments.
Henan Lite is customer-centric and provides a full range of solutions from product selection to after-sales service. With an efficient team and customized services, the company has established long-term cooperative relationships with many well-known companies and won wide recognition and trust in the market.
