Description

Overview of Silicon Carbide Tube

Silicon carbide tubes have superior properties such as high strength, high hardness, good wear resistance, high temperature resistance, corrosion resistance, good heat and shock resistance, high thermal conductivity and good oxidation resistance.
Mainly used in medium frequency forging, various heat treatment electric furnaces, metallurgy, chemical industry, non-ferrous metal smelting and other industries. Widely used in metallurgical sintering furnaces and medium frequency heating forging furnaces. The length can be designed.

Silicon carbide

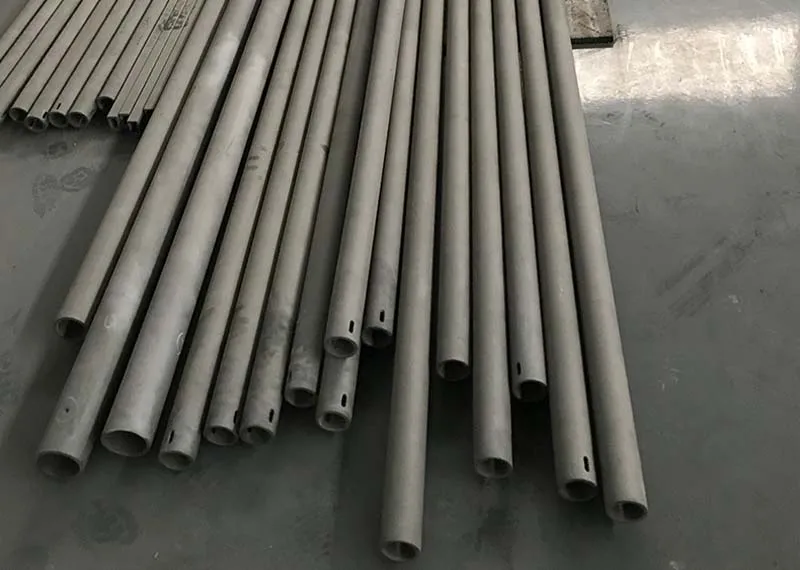

buy silicon carbide tube

Chemical composition

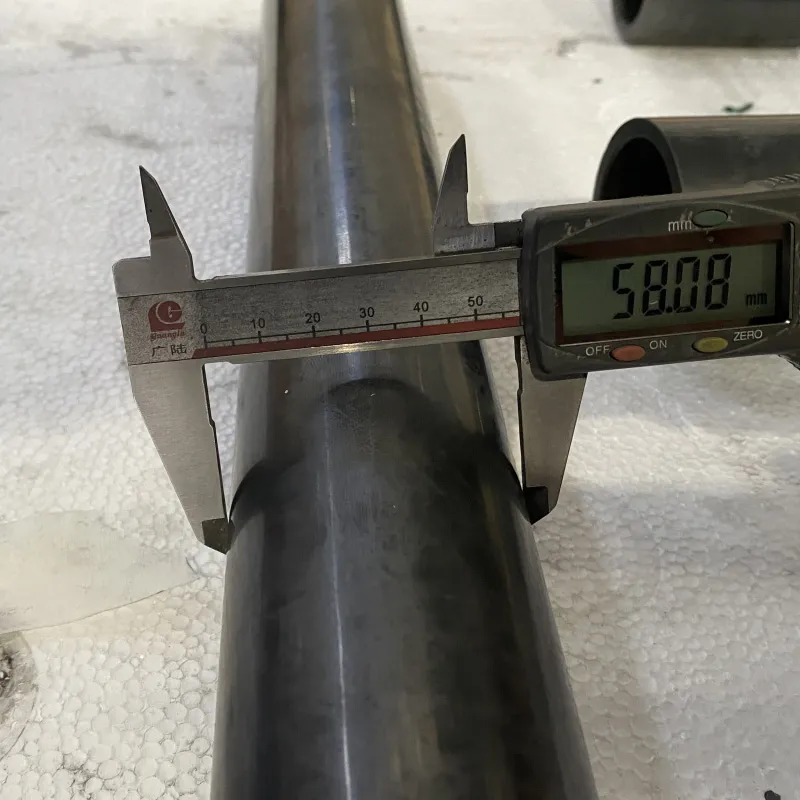

size silicon carbide tube

Please note that these dimensions are for reference only and may vary depending on manufacturer and customer requirements. If you require more detailed sizing information, we recommend contacting us directly.We have a large stock of silicon carbide tubes.

What are the colors of silicon carbide tubes?

• black
• white
• red
• gray
• green

Silicon carbide tube properties

• High strength: The main component of silicon carbide tube is silicon carbide, which is a very hard substance, so the silicon carbide tube itself has high strength.
• High hardness: The Mohs hardness of silicon carbide reaches 9.5, second only to the world’s hardest diamond (10), so the silicon carbide tube is also very hard.
• Good wear resistance: Since silicon carbide has very good wear resistance, it also has good wear resistance.
• High temperature resistance: it can withstand very high temperatures without damage, which makes it very suitable for use in high temperature environments.
• Corrosion resistance: Silicon carbide tube has good corrosion resistance and can resist the erosion of many chemicals.
• Good heat and shock resistance: it can remain stable under temperature changes and vibrations, and is not easy to break or damage.
• High thermal conductivity: Silicon carbide tube has good thermal conductivity and can quickly transfer heat, which is very important for applications that require rapid heating or cooling.
• Good oxidation resistance: it can also maintain its performance in an oxidizing environment, which makes it very useful in many industrial applications.

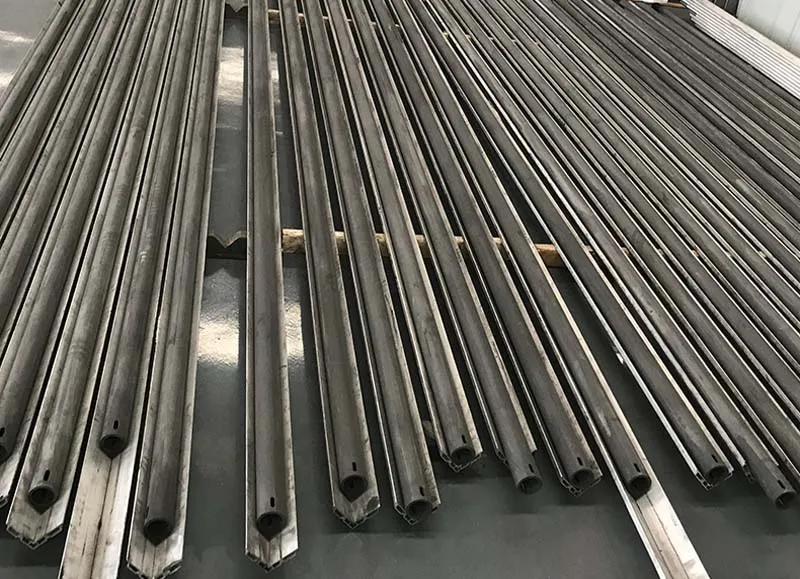

silicon carbide tube nearby

Production process

Raw material selection

• The main raw materials are high-purity silicon carbide powder and binder

Hot pressing process

• After mixing the raw materials, add water in a certain proportion to make a solid blank, then form it through a mold and enter the hot pressing device for hot pressing
  The hot pressing temperature is 2200-2300℃℃, the pressure is 20-30MPa, and the hot pressing time is usually more than 2 hours

Post-processing process

• The blank after hot pressing is dried, degreased, polished and other processing procedures to finally form a finished product
• The drying time is 12-24 hours, and the drying temperature is generally between 120-150℃

Static pressure production technology and process

• Static pressure, as a key process in processing technology, can effectively improve the density and strength of the product
• Equipment operation: Static pressure equipment is a high-precision equipment that requires strict equipment debugging, processing process control and other operations to ensure the stability and consistency of product quality
• Static pressure parameter control: During the static pressing process, it is necessary to accurately control parameters such as pressure, temperature, and holding time to achieve the ideal effect
• Mold making: The design and production of the mold have an important influence on the effect of static pressing processing

Application scenarios of silicon carbide tubes

• Solar inverters
• New energy vehicle chargers
• Switching power supplies

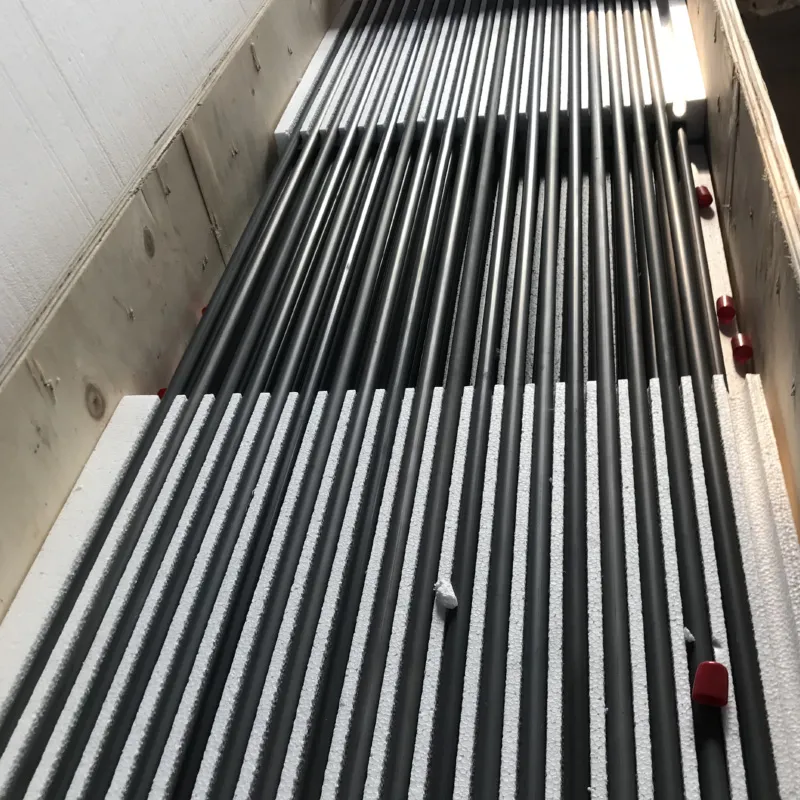

Packaging

Single product size (common): Φ25*1000mm
Minimum packaging size: 150*250*1050mm
Packing style (picture): wooden box
Minimum order quantity: 1 piece
