Description

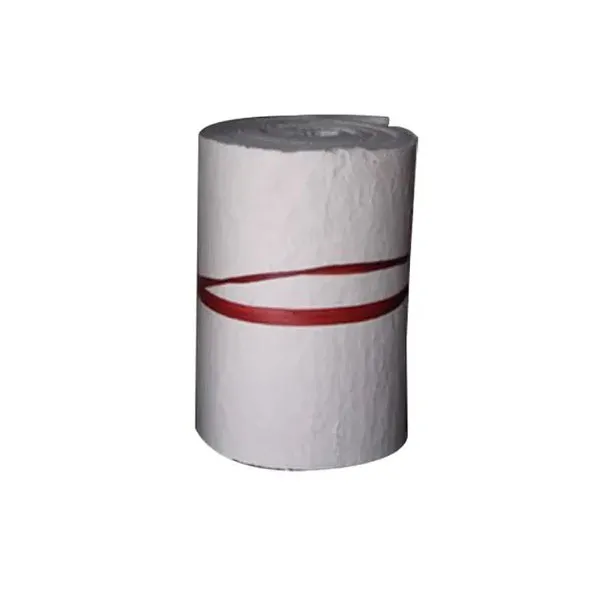

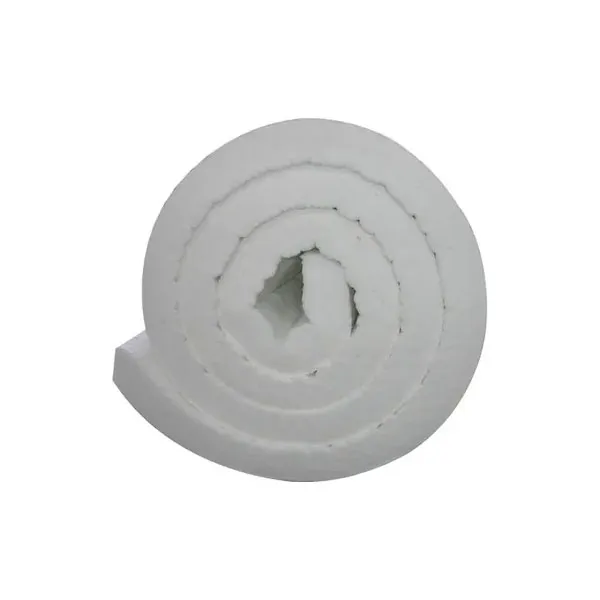

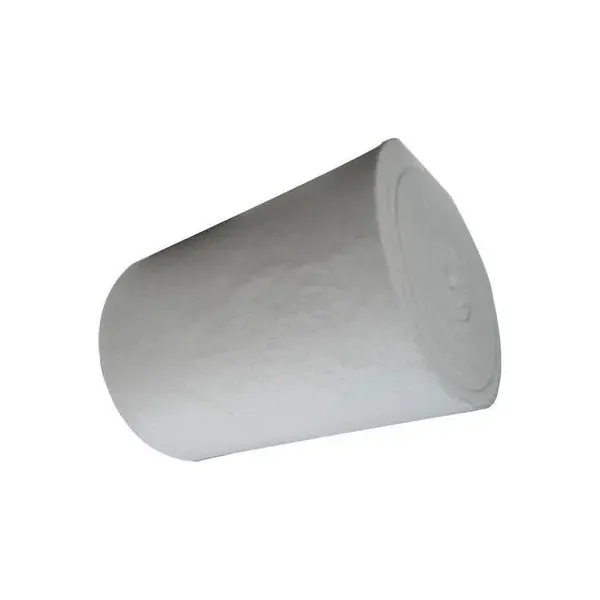

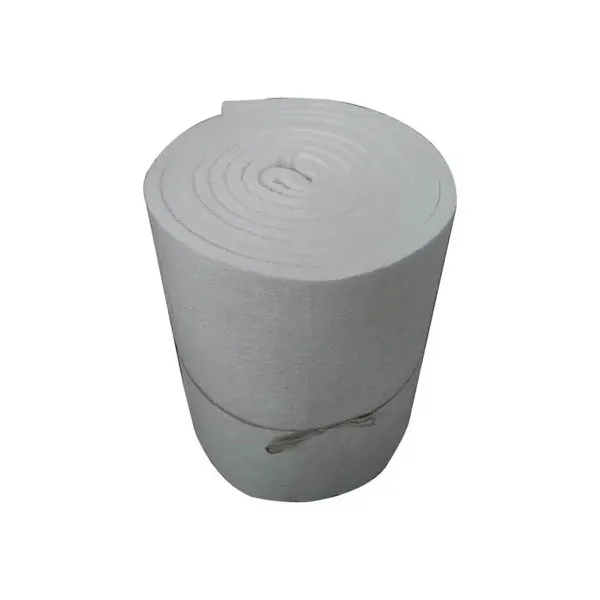

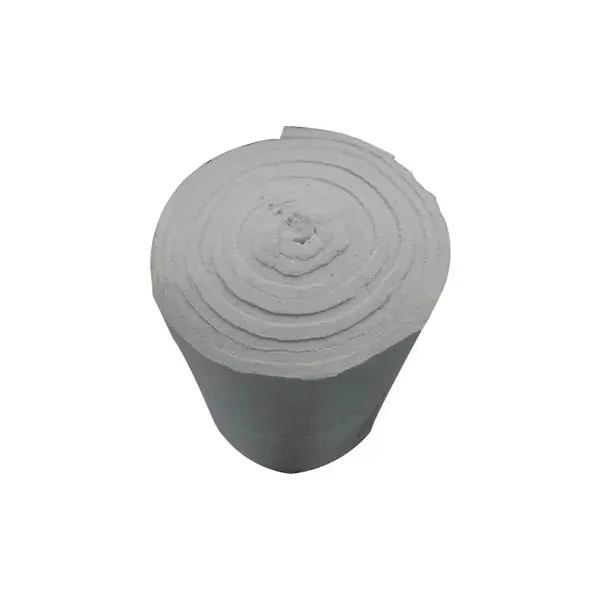

what is ceramic fiber insulation blanket?
Ceramic fiber insulation blanket is a kind of lightweight thermal insulation product with continuous production, uniform fiber interweaving after needling and high tensile strength. It does not contain any bond and is available in different bulk densities and thicknesses, providing users with a wide selection of materials for optimal thermal insulation structure and benefits.

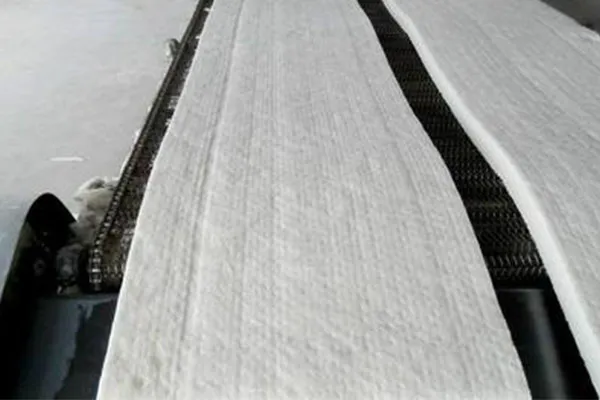

Best ceramic fiber insulation blanket

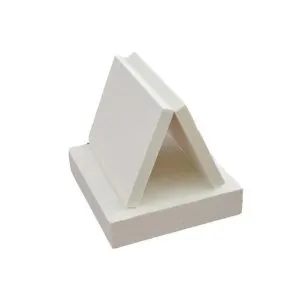

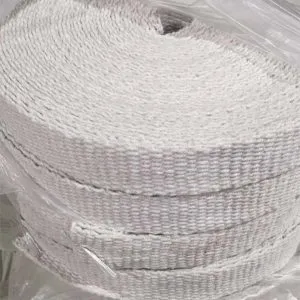

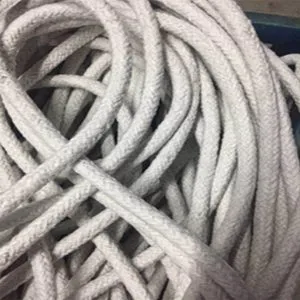

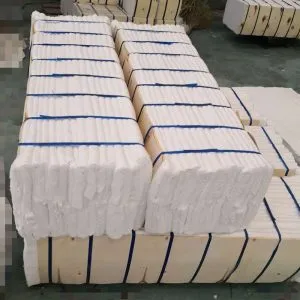

Other hot-selling ceramic fiber products
Production parameters of Ceramic fiber thermal insulation blanket
| Grade | Common | Standard | High Pure | High Alumina | Zirconium | |
| Max. Temperature (°C) | 1100 | 1260 | 1260 | 1360 | 1450 | |
| Working Temperature (°C) | < 1000 | 1150 | 1180 | 1260 | 1350 | |
| Color | Pure White | Pure white | Pure white | Pure white | Pure white | |
| Density (kg/ m3) | 96/128/160 | 96/128/160 | 96/128/160 | 128/160 | 128/160 | |
| Shrinkage on heating (%) (24 hours, density as 128/m3) | -4(1000°C) | -3(1000°C) | -3(1100°C) | -3(1250°C) | -3(1350°C) | |
| Thermal conductivity by mean temp. (w/m.k)(density as 128kg/m3) | 0.09(400°C)0.16(800°C) | 0.09(400°C)0.16(800°C) | 0.09(400°C)0.16(800°C)0.20(1000°C) | 0.12(600°C)0.20(1000°C) | 0.16(800°C)0.20(1000°C) | |
| Tensile strength (MPa)(density as 128kg/m3) | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 | |
| Chemical composition(%) | AL2O3 | 44 | 46 | 47-49 | 52-55 | 39-40 |
| AL2O3+SiO2 | 96 | 97 | 99 | 99 | – | |
| AL2O3+SiO2+ZrO2 | – | – | – | – | 99 | |
| ZrO2 | – | – | – | – | 15-17 | |
| Fe2O3 | <1.2 | <1.0 | 0.2 | 0.2 | 0.2 | |
| Na2O+K2O | ≤0.5 | ≤0.5 | 0.2 | 0.2 | 0.2 | |
From Wikipedia: Ceramic fiber
Best-selling sizes of ceramic fiber insulation blanket
Thickness 6.0mm x Width 610mm x Length 7200mm
Thickness 10mm x Width 1100mm x Length 15000mm
Thickness 12.5mm x Width 610mm x Length 7200mm
Thickness 25mm x Width 600mm x Length 7.2m
Thickness 25mm x Width 610mm x Length 7200mm
Thickness 50mm x Width 610mm x Length 3600mm
Thickness 50mm x Width 600mm x Length 3.6m
The above are our recent hot-selling sizes, and we can accept customized services to meet your needs one-to-one.
ceramic fiber insulation blanket vs. aluminum silicate fiber blanket
The main difference between ceramic fiber blanket and aluminum silicate fiber blanket lies in composition, performance and application.
The difference between ceramic fiber blanket and aluminum silicate fiber blanket in composition is as follows: ceramic fiber blanket is usually made of high-purity alumina, silicate and other ceramic materials; while aluminum silicate fiber blanket is mainly made of aluminum silicate fiber.
Ceramic Fiberboard VS ceramic fiber insulation blanket
| Ceramic Fiberboard | Ceramic fiber blanket | ||
| Density and texture | The density is relatively high, usually between 220-280 kg/m³, the texture is relatively hard and not easy to bend or fold. | The density is low, generally between 90-128 kg/m³, the texture is soft, and it has good elasticity and resilience. | |
| Usage scenarios | Due to its high hardness, it is suitable for applications that require a certain degree of rigidity, such as flat insulation layers, fire doors and fire curtains. | Because it is soft and foldable, it is suitable for occasions that require wrapping, winding or filling, such as pipe insulation, furnace door sealing and high-temperature flue lining. | |
| Thermal insulation effect | Due to its high density, although it has a certain thermal insulation effect, its ability to block hot air flow is slightly inferior to that of ceramic fiber blanket. | Due to its loose structure, it contains a large number of air gaps inside, which can effectively block hot air flow and has better thermal insulation performance. | |
| Price and Value | The price is usually higher, and due to its hardness, the construction and transportation are relatively complicated. | The price is relatively low, and the construction and transportation are relatively simple, so it has a higher cost-effectiveness in many applications. | |
| Chemical and thermal stability | Both have good chemical and thermal stability, but in specific applications, blankets may be more convenient in certain scenarios that require frequent adjustment or replacement due to their softness. | ||
Uses of Ceramic Fiber Blankets
- Industrial kilns: furnace door seals, furnace curtains, and high-temperature flues and air duct bushings and expansion joints of industrial kilns. It can also be used for high-temperature insulation and heat preservation of petrochemical equipment, containers, and pipelines.
- Transportation: Heat insulation and heat preservation of vehicles such as cars and trains improves the combustion efficiency of vehicles and reduces exhaust emissions.
- Construction: Heat insulation and heat preservation of buildings improves the energy efficiency of buildings and reduces energy consumption.
- Aerospace: With its excellent high temperature resistance and heat insulation performance, it has become an ideal choice for making insulation layers, thermal insulation layers, and fireproof layers in spacecraft structures and components. It can effectively protect spacecraft from damage such as high temperature, thermal radiation, and fire, ensuring the safe and stable operation of spacecraft.
