Product

Clay brick

1.Fire clay brick Description   Fire Clay bricks are refractory bricks made of various raw materials including refractory clay, calcined soft clay and soft clay. The alumina content is generally 30% -48% alumina refractory. It is a weakly acidic refractory product that can resist acid slag and acid..

Description

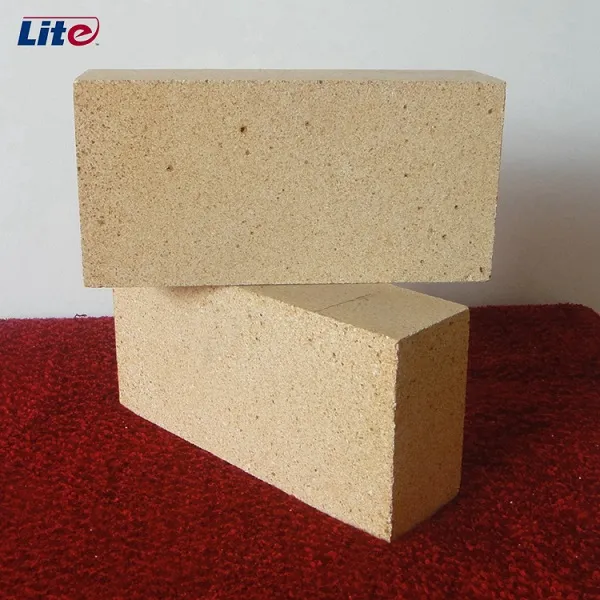

1.Fire clay brick Description

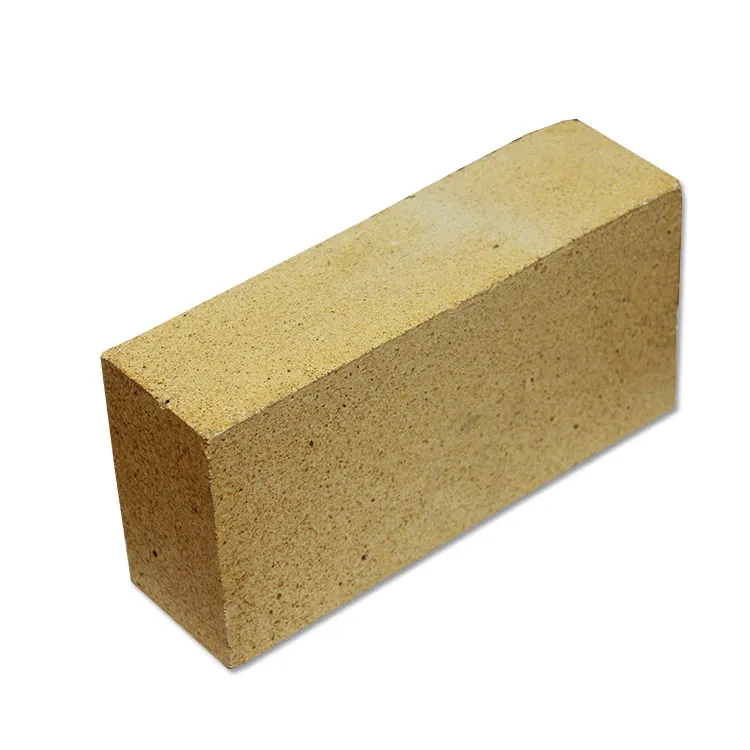

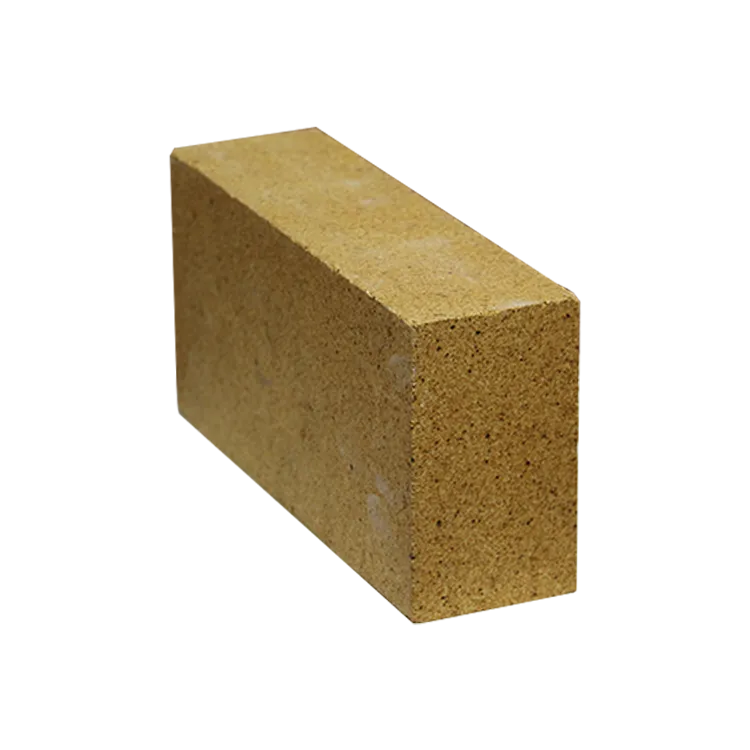

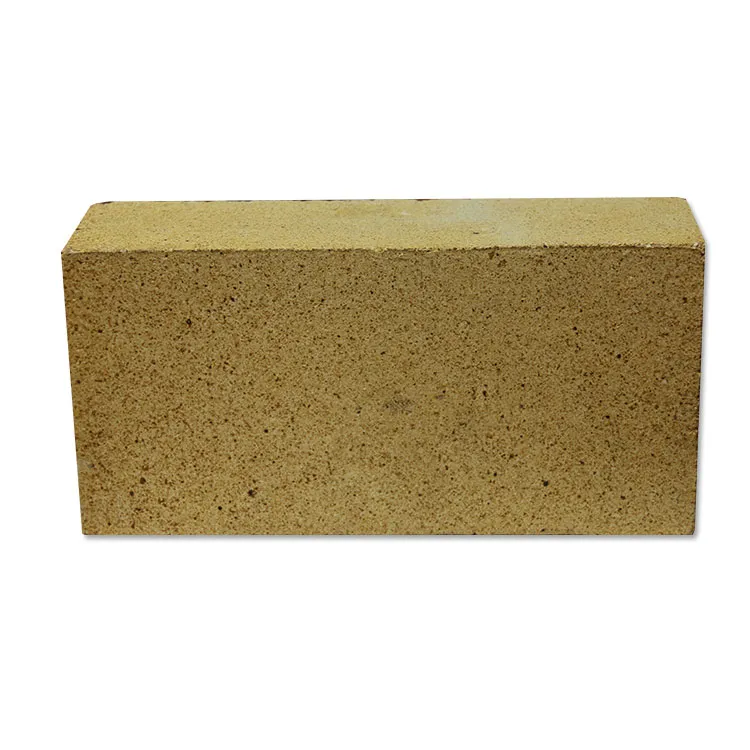

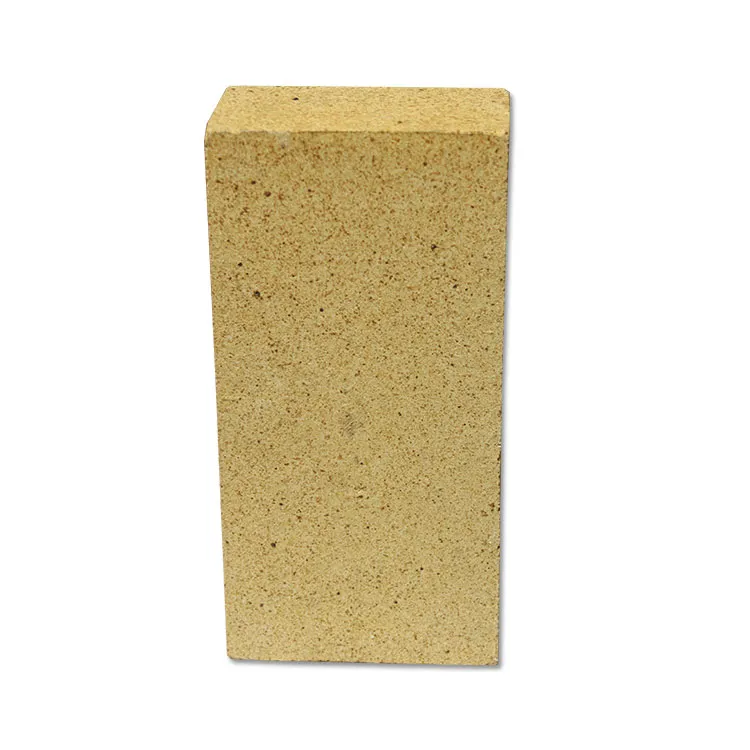

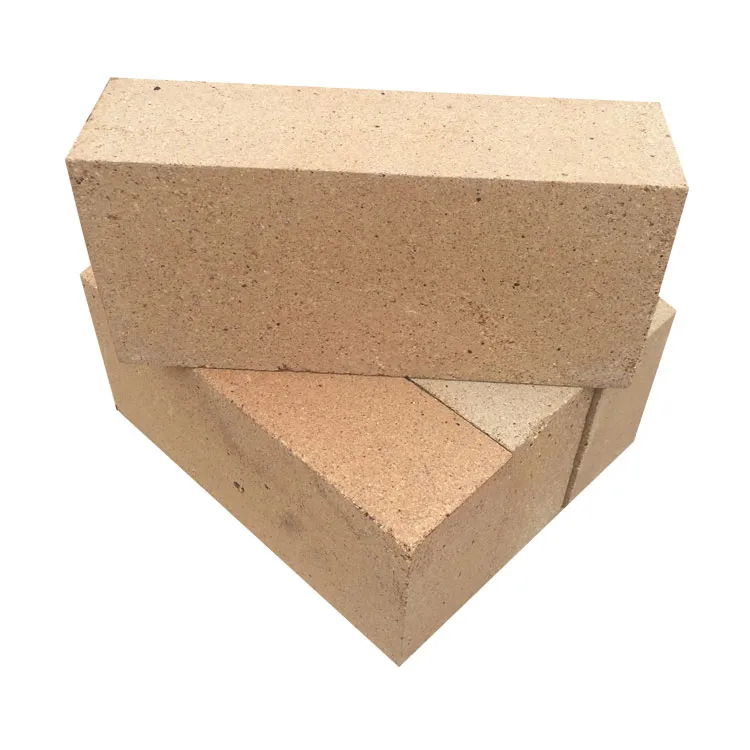

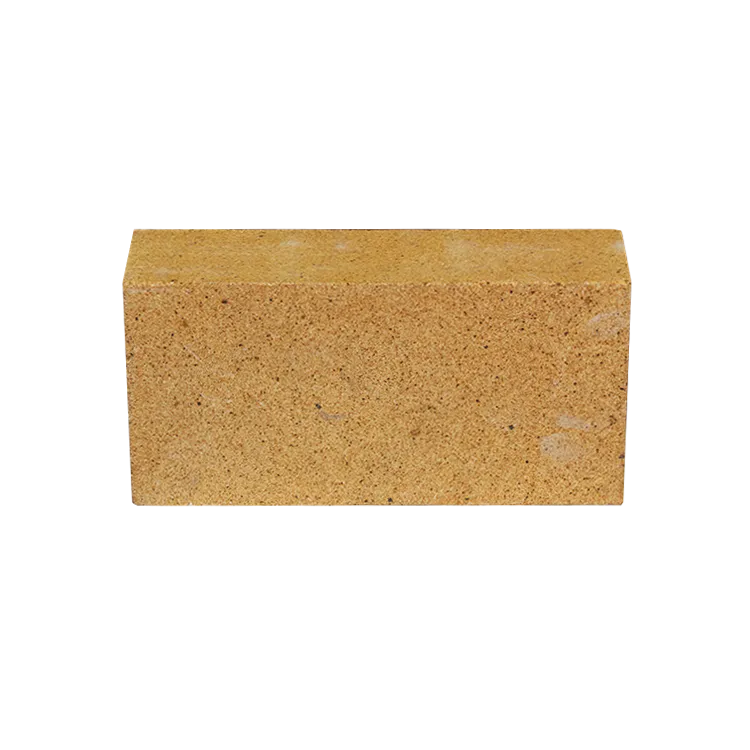

Fire Clay bricks are refractory bricks made of various raw materials including refractory clay, calcined soft clay and soft clay. The alumina content is generally 30% -48% alumina refractory. It is a weakly acidic refractory product that can resist acid slag and acid gas erosion, has good thermal performance, and is resistant to rapid cooling and high temperature.

2.Fire clay brick Feature

(1)High refractoriness

(2)High-temperature endurable

(3)Good corrosion resistance

(4)Good spalling resistance and wear resistance

(5)Good thermal shock resistance

(6)High mechanical strength

(8)Good volume stability at high temperature.



3.Technical Parameter

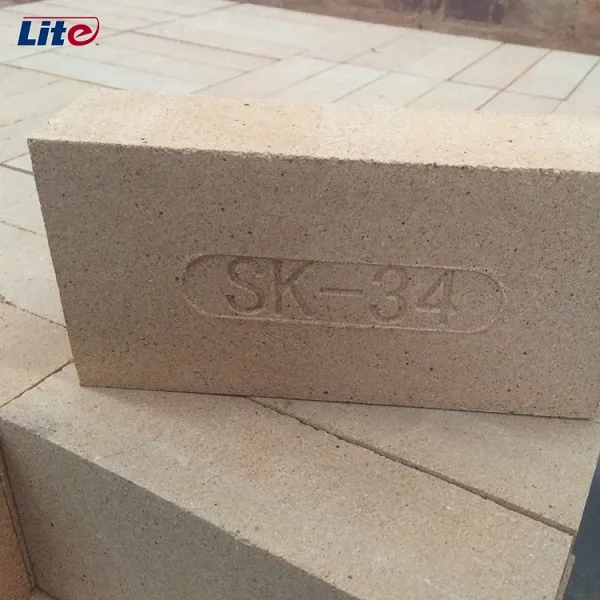

SK seriesSK30SK32SK34SK35
AL 2 O 330%-35%35%-38%38%-42%42%-50%
Fe 2 O 3 /%≤ 3≤ 3≤ 3≤ 2.5
Refractoriness≥ 1690 ℃≥  1730℃≥  1750℃≥  1750℃
B.D/g/cm31.9-2.02.0-2.12.1-2.182.15-2.3
Unit weight

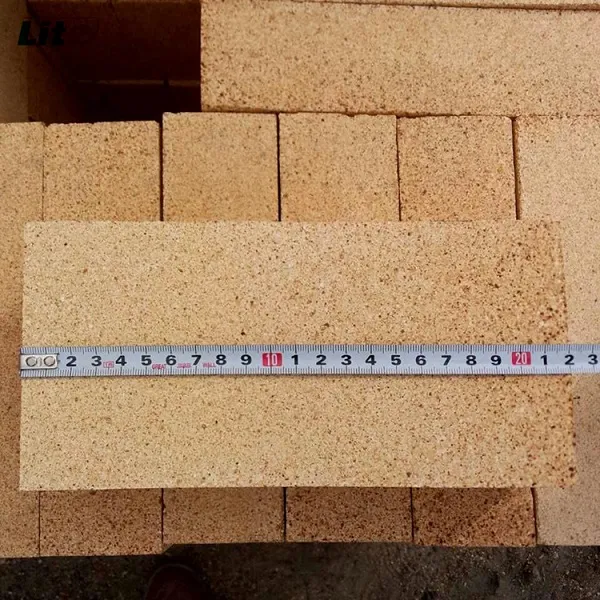

(230*114*65mm)

≥ 3.35KGS≥ 3.55KGS≥ 3.65KGS≥ 3.75KGS
A.P%≤ 26≤ 24≤ 24≤ 22
C.C.S≥ 20Mpa≥ 25Mpa≥ 30Mpa≥ 35Mpa
R.U.L≥ 1250 ℃≥ 1300 ℃≥ 1350 ℃≥ 1420 ℃
R.L.C%0~ -0.5

(1350℃ ,2h)

0~ -0.3

(1350℃ ,2h)

0~ -0.4

(1450℃ ,2h)

+0.1~ -0.4

(1450℃ ,2h)
